Touch to embellish the future
5 Years
| Ask Lasest Price | |
| Brand Name : | YCLTOUCH |
| Model Number : | LV-40 |
| Certification : | RoHS, ISO 9001:2000, ce, EMC, LVD |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 20000/month |
| Delivery Time : | 3-7 Days |
20 Points 40 Inch Ir Touch Frame Infrared Multi Touch Screen Panel, Ir Touch Screen
IR Touch Frames
Specification
Touch Screen Size | 40 |
Supporting resolution | 32768×32768 |
Touch Response Time(Multi touch) | 10-15ms |
Touch Response Time(One touch) | 7ms |
Input method | Any opaque touches, such as fingers, brushes, etc. |
| Number of clicks | Infinite times |
calibration | 4-point calibration |
Touch pressure | No pressure requirement |
Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
Frame Material | Aluminium alloy |
Glass Material | Toughened glass |
Scanning frequency | >110Hz |
Characteristic | Easy installation, strong compatibility |
communication interface | USB 2.0 |
Power supply mode | USB 5.0V |
Working Voltage and Current | 4.75~5.25V , ≤200mA |
Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
Temperature Range | Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃ |
LED Lifetime | 60000hours |
Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged |
Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
Anti-light Interference | Excellent |
Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
Support OS (One touch) | WindowsXP,MacOS.Linux |
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation Number of clicksNumber of clicks
Product Application
company Imformation
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

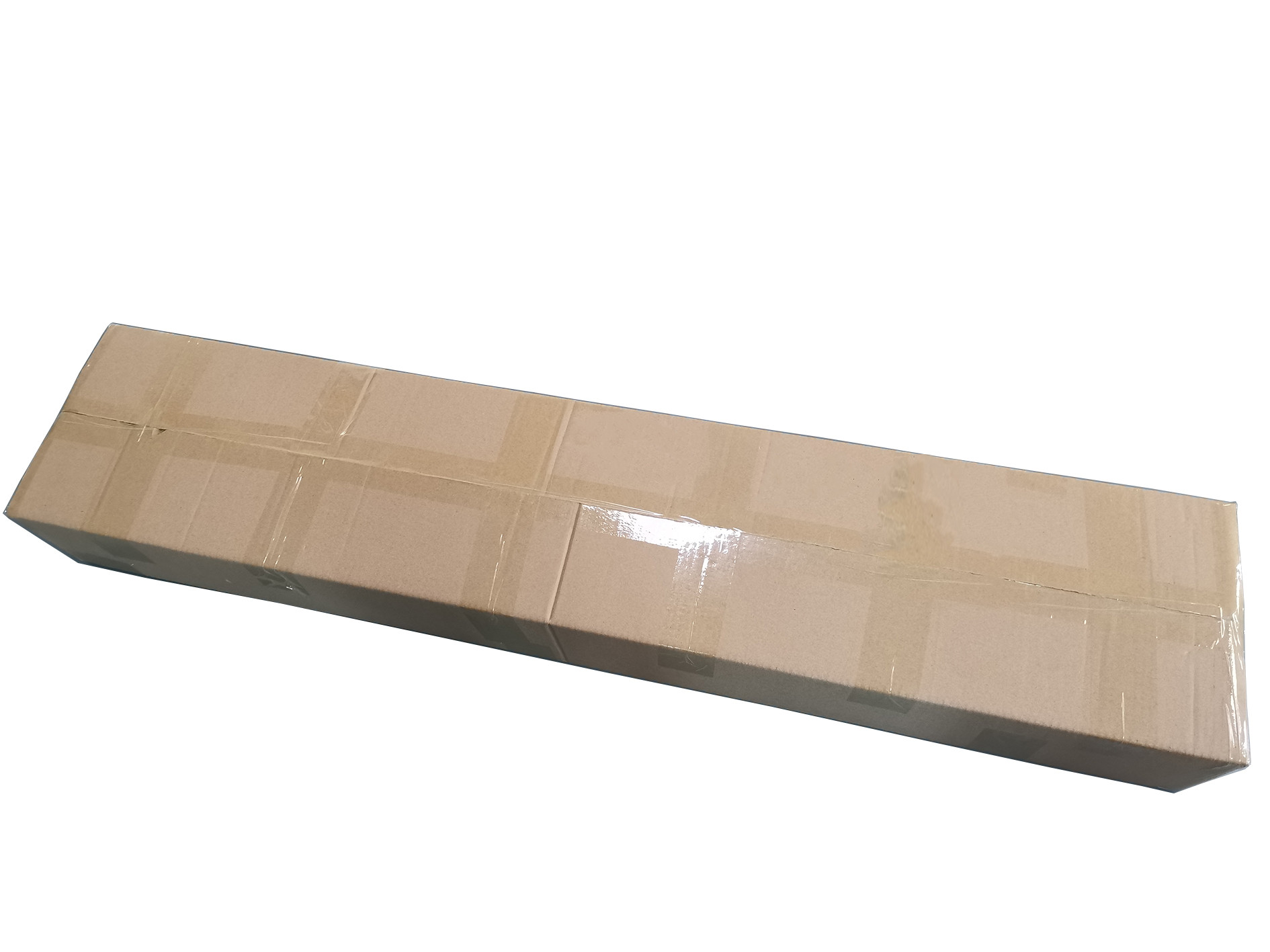

Packing and Delivery
|
|
