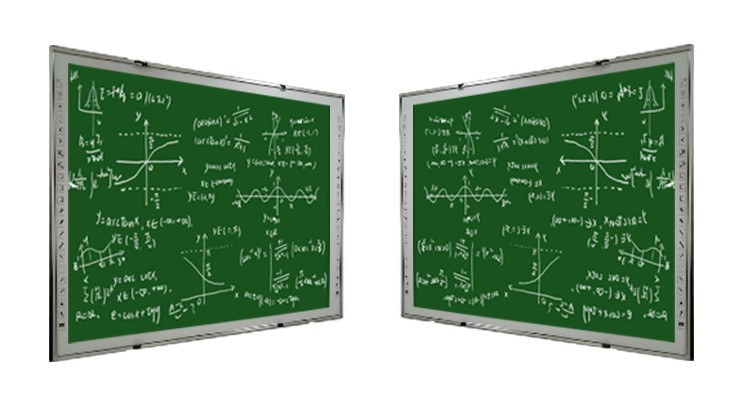

102 inch infrared finger 20 touch points smart blackboard interactive whiteboard meeting teaching

Factory Direct Sales

Appearance	Touch size	(2169.4±2.0)mm*(1311.4±2.0)mm
	Frame size	(2213±2.0)mm*(1355±2.0)mm
	Projection size	(2086.6±2.0)mm*(1311.4±2.0)mm
	Screen percentage	95%
	shortcut keys	Double-sided 22 shortcut keys
	Overall material	Aluminum Alloy
	Panel	Extruded board
	Color Craft	Silver, sandblast oxidation
	Panel Proportion	4:3
	Interface	Type A usb
Touch features	Support Points	Drive-free 20 points
	Touch Mode	Support any non-transparent object touch, including fingers, stylus, plate eraser, etc.
	Minimum identification point	4mm*4mm
	Response speed	≤10ms
	Support resolution	32768x32768
	Scan frame rate	≥100HZ
	Support System	Support Win7, Win 8, Win10, Windows XP, Mac OS
	Touch feature	Support touch object size recognition Sensor discontinuous damage can work normally within 10%
Machine	Package dimensions	(2280±4.0)mm*(1415±4.0)mm *(90±4.0)mm
	Net Weight	(19.5±2)kg
	Gross weight	(24.5±2)kg
	Temperature	Working temperature: -10 ° C ~ 50 ° C Storage temperature: -20 ° C ~ 60 ° C
	limit Humidity limit	Work Storage humidity: 90% RH at 40 ° C without condensation
	Light resistance	10000Lux
	Certification	C-Tick;CE;FCC;ROHS

Product Description

20 points multi-touch

Infrared touch 20 points multi-touch screen enables students write , draw on the screen at the same time, finger gestures, palm erase, simulations....

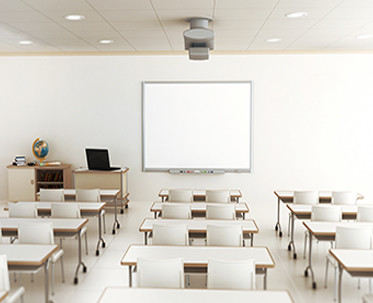

Application scenario

Certifications

Company Profile

FAQ

Q: How long is the warranty time for your company?

A:We offer 2 year warranty after the delivery.

Q:Are you the factory or the trading company?

A:we are the factory in Hangzhou city,Zhejiang province,we can OEM/ODM for you.


Q:Can I customize product as my request?

A:Absolutely yes,we can customized as your requirement.

Q:What payment method your company accept?

A:We accept most of the payment methods,but mainly by TT,other payment term is negotiable.

Q:What will you do if the products were being natural damaged within the warranty time and how about out that time?

A:Well,we will give some simple question to you or get the picture from your side to help us confirm the damaged parts,Once
confirmed,the free replacement will be sent for you.If over the warranty time,we will ask for a very low factory price for the
replacement part.

Shenzhen Yongchuangli Electronic Technology Co., Ltd. was established in 2013. It is an enterprise engaged in R & D, production, sales and service of infrared PCBA, touch frame, touch screen, splicing screen and interactive intelligent electronic whiteboard.We have obtained nearly ten practical computer software copyright in China, and we can provide touch solutions of more than 32 points.Since its establishment, the company has been focusing on the application of interactive touch, and has a professional r&d team with technical force.The core products such as infrared touch frame and multi-point touch screen have the following features: high resolution and fast response, and support multi-point touch operation, dual system for gesture switching, the narrowest and thinnest frame, and multiple systems without drive, which are applicable to mainstream operating systems such as windows, Mac OS, Android, Linux, apple, etc. 4, 6, 10, 16, 20, 32 and 64 points non drive touch, with first-class human-computer interactive touch experience, the product is widely used in education, exhibition, finance, industrial control, medical treatment, game, car, cash register, query and other fields.We have two brands YCL touch and Yongchuangli touch. The series of products manufactured by the company comply with UL, SCC, ROHS and reach standards, and the company has passed ISO9001: 2015 international quality management system certification.
