| Brand Name : | YCL TOUCH |
| Certification : | RoHS, ISO9001, ce, FCC, EMC, LVD |
| Supply Ability : | 1000 Piece/Pieces per Day |
| Price : | $62.20/Pieces 1-9 Pieces |
Quick Details | |||
Products Status: | Stock | Screen Size: | 47" |
Type: | Infrared | Interface Type: | USB |
Resolution: | 32768x32768 | Brand Name: | YCL Touch |
Place of Origin: | Guangdong, China | Technology: | IR Technology |
Input Method: | Any opaque object | Touch Times: | Infinite time |
Function: | Zoom in and out,Light protection,durable,Click,Draw | Response time: | ≤7ms |
Touch points: | 20 points | Warranty: | 12 months |
Application: | Interactive,Teaching ,Conference,Business | Operating System: | Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux |
Installation: | Plug and Play | Glass: | 3mm glass attached (Or no glass) |
Ratio | 16:10 | Frame | Aluminium alloy with black surface treatm |
1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong
stability.
6.Strong anti-jamming ability, anti-static performance of
industrial ESD.
7.Response speed (less than 7 milliseconds), sensor discontinuous
damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.

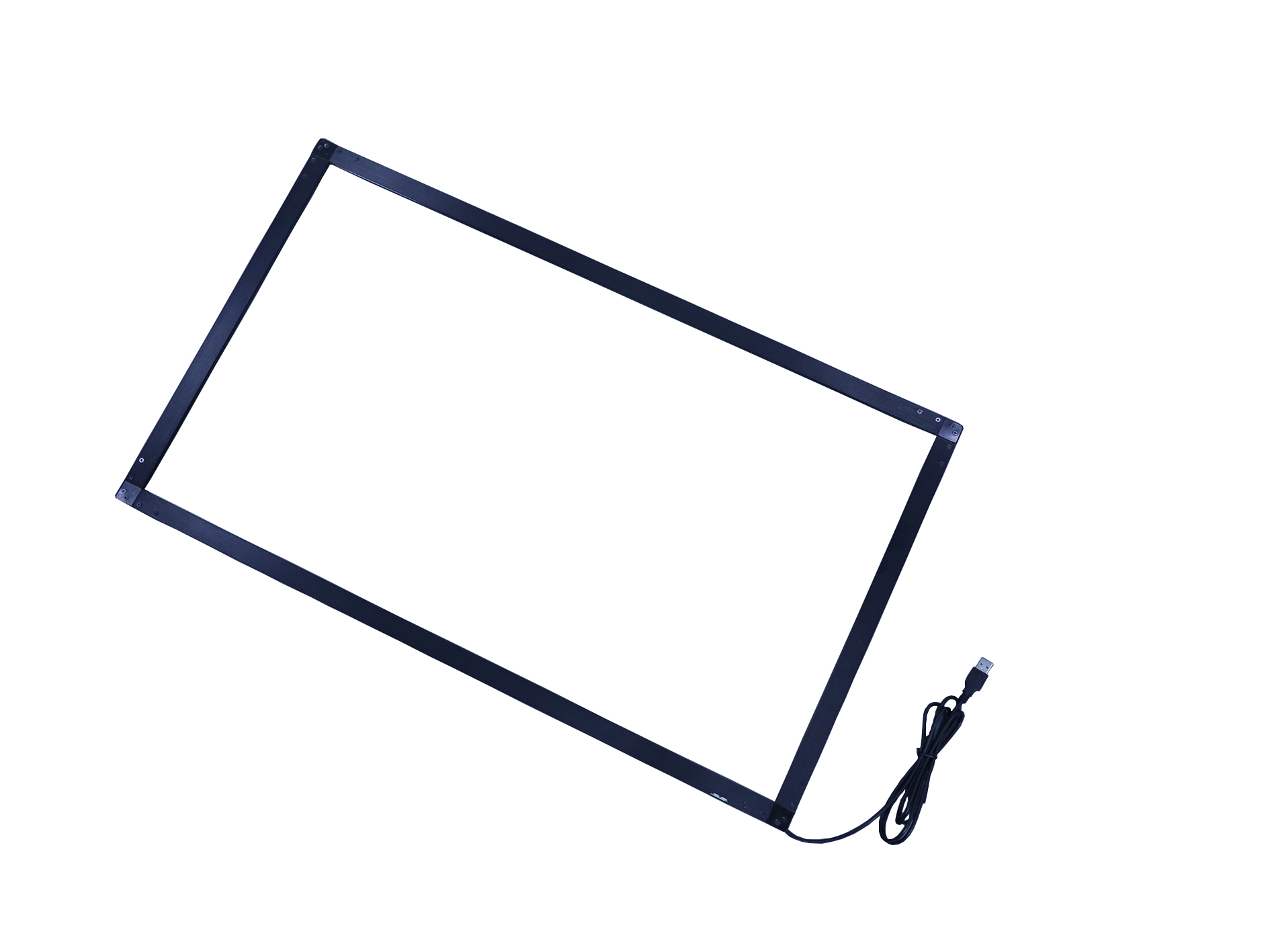

Specification of Infrared Touch Screen | ||
Touch Screen Size | 47" | |
Touch Points | 20-point touch | |
Minimum Recognition Point Size | 4mm*4mm | |
Supporting resolution | 32768×32768 | |
Touch Response Time(Multi touch) | 10-15ms | |
Touch Response Time(One touch) | 7ms | |
Input method | Any opaque touches, such as fingers, brushes, etc. | |
calibration | 4-point calibration | |
Number of clicks | Infinite times | |
Touch pressure | No pressure requirement | |
Interface type | 1.5 m USB cable receptacle, the receptacle 5P | |
Line length | 1.5m | |
Frame Material | Aluminium alloy | |
Glass Material | Toughened glass | |
Characteristic | Easy installation, strong compatibility | |
Scanning frequency | >110Hz | |
communication interface | USB 2.0 | |
Power supply mode | USB 5.0V | |
Working Voltage and Current | 4.75~5.25V , ≤200mA | |
Humidity | Up to 90% RH from 0°C to +40°C, non-condensing | |
Temperature Range | Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃ | |
LED Lifetime | 60000hours | |
Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged | |
Anti-light Interference | Excellent | |
ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge | |
Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 | |
Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod | |
Support OS (One touch) | WindowsXP,MacOS.Linux | |
1.education
2.Medical industry
3.Finance
4.Exhibition
5.Industrial control
6.Man-machine interaction
7.TV
8.PC
9.And more
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
Packaging Detaills:Foam and carton box
Delivery Time: within 5-15 workdays after payment
|
|
