22 Inch IR Touch Screen Overlay 4 Calibration 10 Points

Ask Lasest Price
Brand Name :	YCLTOUCH
Model Number :	XT-22
Certification :	RoHS, ISO9001, ce, EMC, LVD
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000/ months
Delivery Time :	3-7Days

Add to Cart

Product Details
Company Profile

22 Inch IR Touch Screen Overlay 4 Calibration 10 Points

22 Inch Ir Touch Frame Infrared Multi Touch Screen Panel, Ir Touch Screen

infrared touch screen 22 inch multi ir touch frame,ir touch panel overlays with 10 points

Description for XT series infrared touch frame :

22 inch Infrared Touch Frame with 10 points

Model:XT-22

22 Inch IR Touch Screen Overlay 4 Calibration 10 Points

Product Description
Touch Screen Size	22"
Supporting resolution	32768×32768
Minimum Recognition Point Size	2.5mm
Touch Points	10 touch points
Touch Response Time(Multi touch)	10-15ms
Touch Response Time(One touch)	8ms
Input method	Any opaque touches, such as fingers, brushes, etc.
calibration	4 or 9 points calibration
Number of clicks	Infinite times
Touch pressure	No pressure requirement
Interface type	1.5 m USB cable receptacle, the receptacle 5P
Line length	1.5m
Frame Material	Aluminium alloy
Power supply mode	USB 5.0V
communication interface	USB 2.0
Glass Material	Toughened glass
Characteristic	Easy installation, strong compatibility
Scanning frequency	>110Hz
Working Voltage and Current	4.75~5.25V , ≤200mA
Humidity	Up to 90% RH from 0°C to +40°C, non-condensing
Temperature Range	Working temperature:-10℃～50℃,Storage temperature:-20℃～60℃
Anti-light Interference	Excellent
ESD	EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge
LED Lifetime	60000hours
Fault-tolerant	Able to work if less than 10% non-consecutive sensors are damaged
Firmware Upgrade	USB Upgrade: Windows 8,Windows 7
Support OS(Multi touch)	Windows10,Windows8,Windows7,Andriod
Support OS (One touch)	WindowsXP,MacOS.Linux

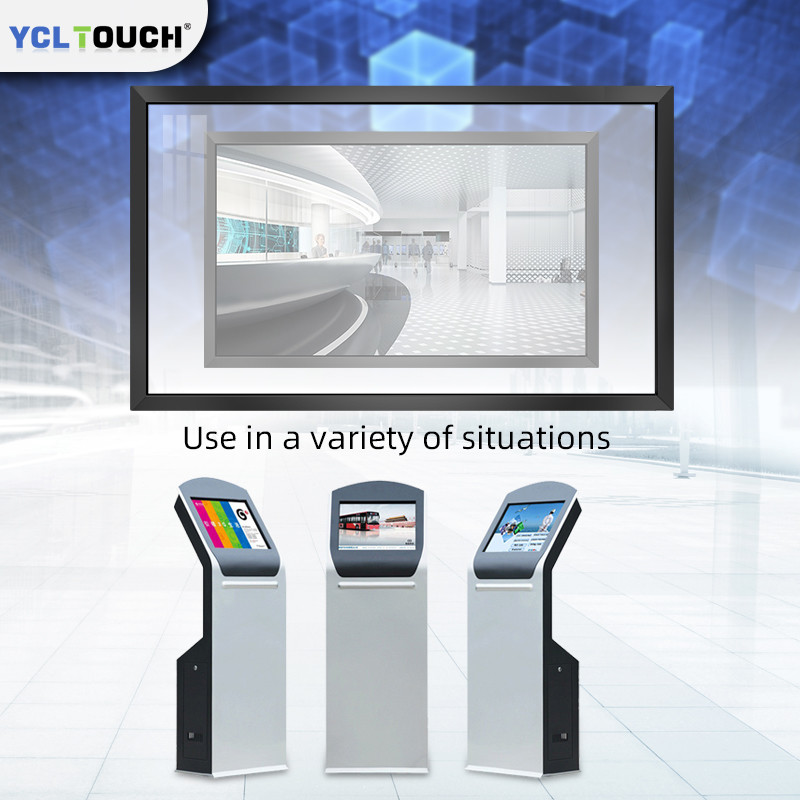

22 inch touch screen infrared ir touch frame for LCD monitor

1 Anti-light, sunshine from any angle does not affect touch control

2 True 10-point touch, touch experience is not affected by object occlusion

3 Hardware design of industrial control level, working normally at －15℃~55℃

4 Strong anti-jamming ability, anti-static performance of industrial ESD

5 Strong compatibility, drive-free support for multiple operating systems

6 Support gesture function, customize output protocol, interface and application development

7 Provide self-developed touch screen configuration software and remote assistance tools

8 Response fast, sensor discontinuous damage 10%, can still work

9 The size can be customized

Main Export Markets:

Western Europe
North America
Asia
The US
Central/South America
Eastern Europe
Australasia
Mid East/Africa

Our Company

Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Welcome to our company:Shenzhen Yongchuangli Electronic Technology
Co., Ltd. Established in 2013, Shenzhen Yongchuangli Electronic
Technology Co., Ltd. is a high-tech enterprise specializing in
R&D,production and sales of infrared touch PCBA , touch frame,
touch screen, splicing screens, smart interactive electronic
whiteboard(projection) and so on. It has obtained nearly 10
practical technical softwares in China, and has truly achievemore
than 64touch points. Control solution provider.We has iour own brand YCLTouch and Yongchuangli; Yongchuangli Touch
is based on touch query machine, industrial touch display and touch
tablet computer (including embedded), information open system
solutions; leading touch technology and quality-oriented
Yongchuangli spirit make Yongchuangli become a full-fledged company
in touch screen industry. Vigorous industry pioneers.
Quality products and all-round service are the basis for us to win
the market. We patiently listen to every customer's suggestions and
opinions, so that we continue to forge ahead, we always uphold the
customer first, dedicated service!
The series of products produced by the company conform to UL, FCC,
ROHS and Reach standards. The company has passed the ISO 9001:2015
international quality management system certification.
The company's core philosophy: touch embellishment of the future!

Key Specifications/Special Features:

22-inch IR touch frame/infrared touch frame/touch panel/infrared
touch overlay

22 Inch IR Touch Screen Overlay 4 Calibration 10 Points
