| Brand Name : | YCL TOUCH |
| Certification : | RoHS, ISO9001, ce, FCC, EMC, LVD |
| Price : | $35.20/Pieces 2-9 Pieces |
Quick Details | ||||||
Products Status: | Stock | Screen Size: | 18.5" | |||
Type: | Infrared | Interface Type: | USB | |||
Resolution: | 32768x32768 | Brand Name: | YCL Touch | |||
Place of Origin: | Guangdong, China | Technology: | IR Technology | |||
Input Method: | Any opaque object | Touch Times: | Infinite time | |||
Function: | Zoom in and out,Light protection,durable,Click,Draw | Response time: | ≤10ms | |||
Touch points: | 10 points | Warranty: | 12 months | |||
Application: | Interactive,Teaching ,Conference,Business | Operating System: | Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux | |||
Installation: | Plug and Play | Glass: | 3mm toughened glass | |||
ratio | 16:10 | |||||

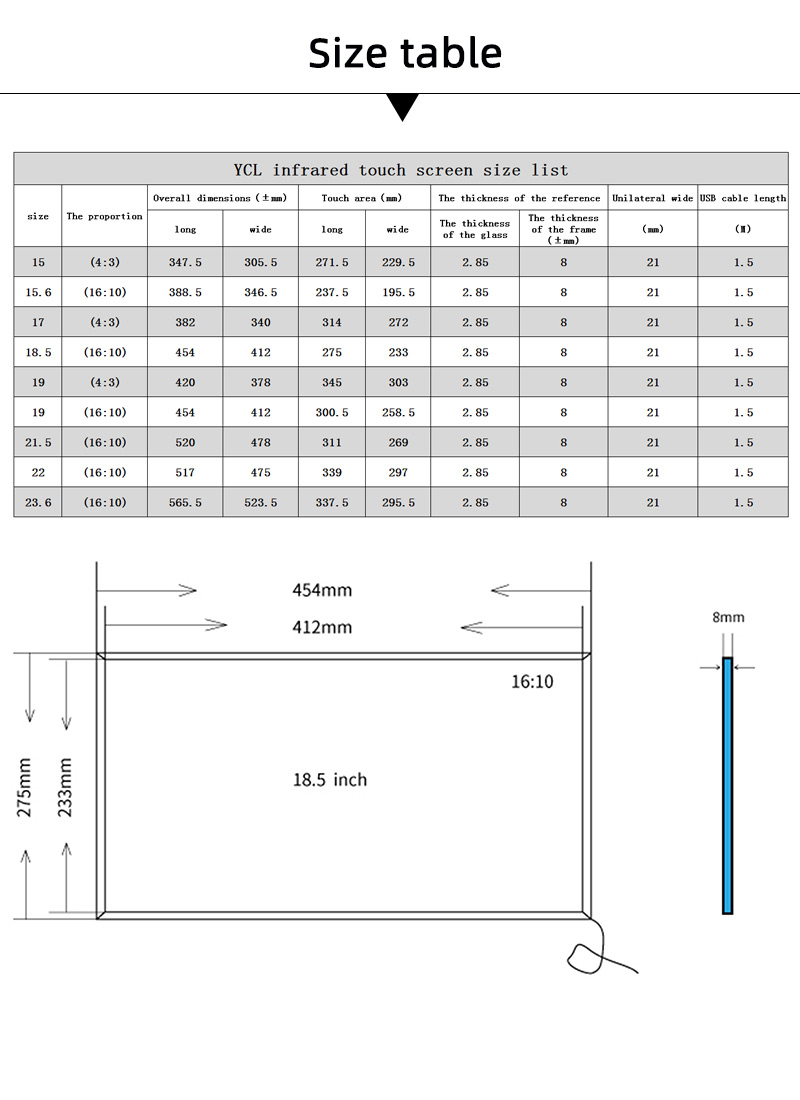

Specification of Infrared Touch Screen | ||
Touch Screen Size | 18.5" | |
Touch Points | 10-point touch | |
Touch Accuracy | The middle area is less than 1 mm and the edge is less than 3 mm. | |
Supporting resolution | 32768×32768 | |
response speed | ≤10ms | |
Input method | Any opaque touches, such as fingers, brushes, etc. | |
calibration | 4-point calibration | |
Number of clicks | Infinite times | |
Touch pressure | No pressure requirement | |
Interface type | USB 2.0+UATR | |
Line length | 1.5m | |
Frame Material | Aluminium alloy | |
Glass Material | Toughened glass | |
Characteristic | Easy installation, strong compatibility | |
Scanning frequency | >100Hz | |
communication interface | USB 2.0 | |
transmission speed | 480Mbps | |
Power supply mode | USB 5.0V | |
Working Voltage and Current | 4.75~5.25V , ≤200mA | |
Working temperature and humidity | -15℃~55℃,10% ~ 90% RH | |
Storage temperature and humidity | -40℃~75℃,10% ~ 90% RH | |
Light resistance | < 80000 Lux (different infrared tubes, different intensities) | |
Electrostatic grade | According to EN 6100-4-2 2008:3. Contact discharge 4KV,Air
Discharge 8KV (Test in Full Machine) | |
Firmware update | Support | |
operating system | Windows 7,Windows 8,Windows10,Android,Linux,Mac,Windows xp | |
API | Support for providing dynamic link libraries and supporting custom
API interfaces | |
High temperature storage | 100 C, 20 hours, 2 hours at room temperature. | |
Cryogenic storage | - 40 C, 20 hours, 2 hours at room temperature. | |
High and Low Temperature Cycle Work | 80 C, 48 hours, - 10 C, 12 hours. | |
High humidity work | 80 C, 85% RH, 20 hours. | |
USB plug-in test | > 2000 times | |
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.
|
|
