Ir Multi Touch Screen Frame works 18.5 Infrared Touch Screen Suite Infrared Multi-Point Touch Panel And Glass

Product Description

Quick Details
Products Status:	Stock	Screen Size:	18.5"
Type:	Infrared	Interface Type:	USB
Resolution:	32768x32768	Brand Name:	YCL Touch
Place of Origin:	Guangdong, China	Technology:	IR Technology
Input Method:	Any opaque object	Touch Times:	Infinite time
Function:	Zoom in and out,Light protection,durable,Click,Draw	Response time:	≤10ms
Touch points:	10 points	Warranty:	12 months
Application:	Interactive,Teaching ,Conference,Business	Operating System:	Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux
Installation:	Plug and Play	Glass:	3mm toughened glass
ratio	16:10

Infrared touch screen Features:

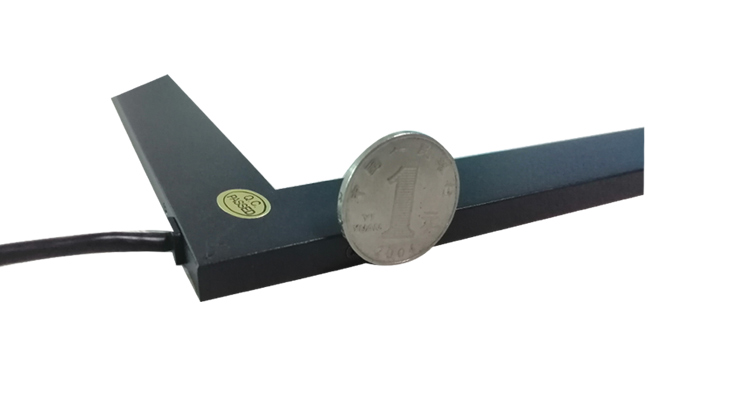

1. Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2. High touch accuracy and smooth writing.
3. Driver-free support for multiple operating systems.
4. Long service life, maintenance-free.
5. Toughened glass material, with high transmittance, strong stability.
6. Strong anti-jamming ability, anti-static performance of industrial ESD.
7. Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8. No special touch tools are needed, just opaque objects.

Specification of Infrared Touch Screen
Touch Screen Size	18.5"
Touch Points	10-point touch
Touch Accuracy	The middle area is less than 1 mm and the edge is less than 3 mm.
Supporting resolution	32768×32768
response speed	≤10ms
Input method	Any opaque touches, such as fingers, brushes, etc.
calibration	4-point calibration
Number of clicks	Infinite times
Touch pressure	No pressure requirement
Interface type	USB 2.0+UATR
Line length	1.5m
Frame Material	Aluminium alloy
Glass Material	Toughened glass
Characteristic	Easy installation, strong compatibility
Scanning frequency	>100Hz
communication interface	USB 2.0
transmission speed	480Mbps
Power supply mode	USB 5.0V
Working Voltage and Current	4.75~5.25V , ≤200mA
Working temperature and humidity	-15℃~55℃,10% ~ 90% RH
Storage temperature and humidity	-40℃~75℃,10% ~ 90% RH
Light resistance	< 80000 Lux (different infrared tubes, different intensities)
Electrostatic grade	According to EN 6100-4-2 2008:3. Contact discharge 4KV,Air Discharge 8KV (Test in Full Machine)
Firmware update	Support
operating system	Windows 7,Windows 8,Windows10,Android,Linux,Mac,Windows xp
API	Support for providing dynamic link libraries and supporting custom API interfaces
High temperature storage	100 C, 20 hours, 2 hours at room temperature.
Cryogenic storage	- 40 C, 20 hours, 2 hours at room temperature.
High and Low Temperature Cycle Work	80 C, 48 hours, - 10 C, 12 hours.
High humidity work	80 C, 85% RH, 20 hours.
USB plug-in test	> 2000 times

Infrared Touch Application Scene

1.education
2.Medical industry
3.Finance
4.Exhibition
5.Industrial control
6.Man-machine interaction
7.TV
8.PC
9.And more

Congratulations, you found the source manufacturer.

Factory direct sales Exclusive customization Stable supply Quality Assurance

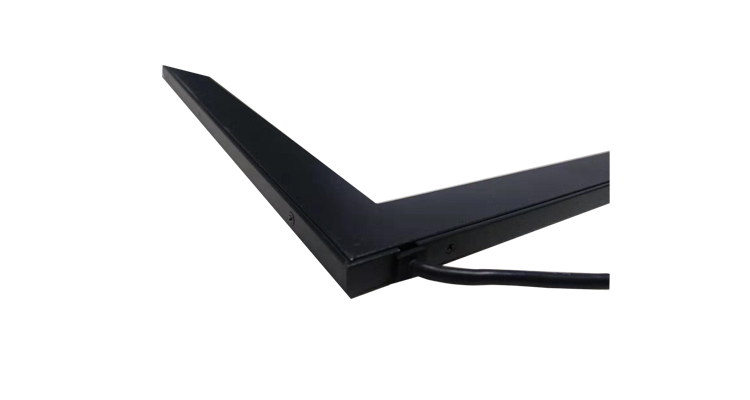

Details Images

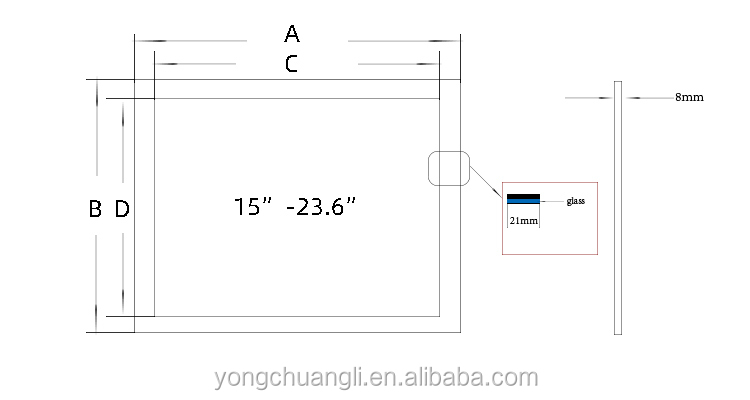

Infrared touch screen size

size

Ratio

Shape size(A)

Shape size(B)

Display size(C)

Display size(D)

Glass

thickness

15

4:3

347.5mm

271.5mm

305.5mm

229.5mm

3mm

8mm

15.6

16:10

388.5mm

237.5mm

346.5mm

195.5mm

3mm

8mm

17

4:3

382mm

314mm

340mm

272mm

3mm

8mm

18.5

16:10

454mm

275mm

412mm

233mm

3mm

8mm

19

4:3

420mm

345mm

378mm

303mm

3mm

8mm

19

16:10

454mm

300.5mm

412mm

258.5mm

3mm

8mm

21.5

16:10

520mm

311mm

478mm

269mm

3mm

8mm

22

16:10

517mm

339mm

475mm

297mm

3mm

8mm

23.6

16:10

565.5mm

337.5mm

523.5mm

295.5mm

3mm

8mm

Infrared Scene Application

Our Company

Welcome to our company:Shenzhen Yongchuangli Electronic Technology Co., Ltd.

Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.

Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.

Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!

The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

Packing & Delivery

Packaging Detaills:Foam and carton box
Delivery Time: within 5-15 workdays after payment

Shenzhen Yongchuangli Electronic Technology Co., Ltd. was established in 2013. It is an enterprise engaged in R & D, production, sales and service of infrared PCBA, touch frame, touch screen, splicing screen and interactive intelligent electronic whiteboard.We have obtained nearly ten practical computer software copyright in China, and we can provide touch solutions of more than 32 points.Since its establishment, the company has been focusing on the application of interactive touch, and has a professional r&d team with technical force.The core products such as infrared touch frame and multi-point touch screen have the following features: high resolution and fast response, and support multi-point touch operation, dual system for gesture switching, the narrowest and thinnest frame, and multiple systems without drive, which are applicable to mainstream operating systems such as windows, Mac OS, Android, Linux, apple, etc. 4, 6, 10, 16, 20, 32 and 64 points non drive touch, with first-class human-computer interactive touch experience, the product is widely used in education, exhibition, finance, industrial control, medical treatment, game, car, cash register, query and other fields.We have two brands YCL touch and Yongchuangli touch. The series of products manufactured by the company comply with UL, SCC, ROHS and reach standards, and the company has passed ISO9001: 2015 international quality management system certification.
